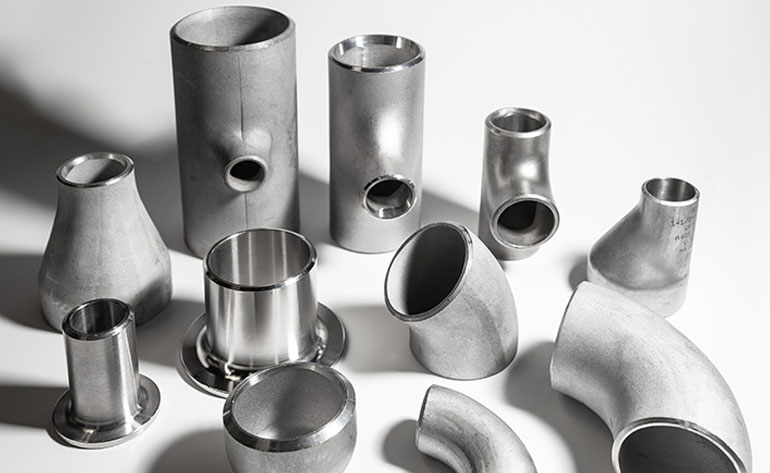

304L stainless steel buttweld fittings are essential components in various industries where corrosion resistance, versatility, and ease of fabrication are critical. Comprising primarily of chromium and nickel, with a low carbon content compared to its counterpart 304 stainless steel, 304L offers exceptional corrosion resistance, making it suitable for applications in industries such as food and beverage, pharmaceuticals, and chemical processing. Its ability to withstand exposure to corrosive substances and maintain its mechanical properties even after welding makes it a popular choice.
One of the key advantages of 304L stainless steel is its weldability. The low carbon content reduces the risk of sensitization and intergranular corrosion, making it ideal for welding applications. This feature, along with its resistance to a wide range of corrosive environments, ensures the longevity of piping systems in industries where maintaining purity, sanitation, and product quality is crucial.
Available in various types including elbows, tees, reducers, and caps, 304L stainless steel buttweld fittings offer versatility in designing and constructing piping systems. Their wide range of sizes, wall thicknesses, and configurations allows them to be tailored to different project requirements. It's important to adhere to industry standards and specifications during material selection, installation, and usage to ensure optimal performance. The combination of corrosion resistance, weldability, and ease of fabrication embodied by 304L stainless steel buttweld fittings positions them as key components in industries where reliability, hygiene, and efficient fluid transport are imperative.
Largest Inventory
Customer Support
On Time Deliveries
ISO 9001 : 2015 Certified
Specification:
Sizes (Seamless): 1/2" - 24"
Sizes (ERW): 1/2" - 24"
Sizes (SAW/EFW): 8" - 120"
Wall Thickness: Schedule 5S, 10S, 40S, 80S, XS, XXS
Length: Single Random, Double Random, Cut Length
Chemical Composition of 304L Stainless Steel Buttweld Fittings
| Element | Chromium (Cr) | Nickel (Ni) | Carbon (C) | Manganese (Mn) | Silicon (Si) | Phosphorus (P) | Sulfur (S) |
| Composition Range (%) | 18.0 - 20.0 | 8.0 - 12.0 | 0.03 max. | 2.00 max. | 0.75 max. | 0.045 max. | 0.03 max. |
Mechanical Properties of 304L Stainless Steel Buttweld Fittings
| Property | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) | Hardness (Rockwell B) | Modulus of Elasticity | Density |
| Value | 70 ksi (485 MPa) min. | 25 ksi (170 MPa) min. | 40% min. | 123 max. | 70 max. | 28.0 x 10^6 psi (193 GPa) | 0.29 lb/in^3 (8.0 g/cm^3) |
Advantages of 304L Stainless Steel Buttweld Fittings:
- Good general corrosion resistance and high strength
- Good sulfide stress corrosion resistance
- Resistance to chloride pitting and crevice corrosion
- Higher resistance to chloride stress corrosion cracking
- Easy to weld and conform
Some of Our Specialities that make us a profitable Business Partner for our clients are :
- Customer focused approach
- Superior quality products
- Timely deliverices
- Customize Size & Specification
- Competitive Pricing
Applications Industry
| Pharmaceutical Equipment | Chemical Equipment |
| Sea Water Equipment | Heat Exchangers |
| Heat Exchangers | Gas Processing |
| Condensers | Specialty Chemicals |
| Pulp and Paper Industry | Pharmaceuticals |
