Monel 400 buttweld fittings stand as stalwart components in industries demanding a combination of corrosion resistance, high strength, and exceptional durability. Crafted from Monel 400, a nickel-copper alloy renowned for its robust performance, these fittings find a place in sectors such as marine, chemical processing, and offshore engineering. Manufacturers specializing in Monel 400 buttweld fittings offer solutions that combat a variety of corrosive conditions, ranging from seawater to acidic environments.

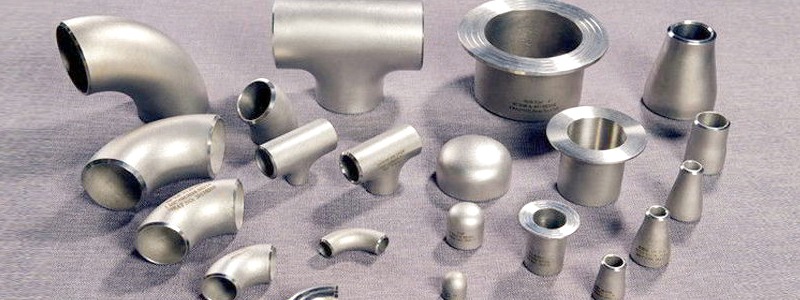

These fittings, carefully engineered and manufactured, come in various forms including elbows, tees, reducers, and more, each designed to facilitate leak-free and sturdy connections. The innate resistance of Monel 400 to both seawater and reducing agents makes it a reliable choice for industries that grapple with demanding applications. The production process adheres to industry standards like ASTM B366 and ASME B16.9, ensuring not only dimensional accuracy but also optimal performance under challenging circumstances.
The expertise of Monel 400 buttweld fittings manufacturers extends beyond fabrication; they cater to specific project requirements by offering customization in sizes, schedules, and configurations. By delivering dependable fittings that can withstand harsh conditions while maintaining mechanical integrity, these manufacturers contribute to the overall efficiency and safety of industrial infrastructure. Monel 400's reputation as a corrosion-resistant alloy, combined with the dedication of manufacturers, translates into fittings that ensure longevity and reliability in critical applications.
Largest Inventory
Customer Support
On Time Deliveries
ISO 9001 : 2015 Certified
Specification:
Sizes (Seamless): Available in a wide range of seamless sizes to accommodate various industrial needs.
Sizes (ERW) : Typically provided in smaller to medium sizes, suitable for different applications.
Sizes (SAW/EFW) : Well-suited for larger sizes, generally starting from moderate diameters.
Wall Thickness : Varies based on size and application, typically specified using Schedule values or in millimeters.
Length : Standard lengths extend up to around 12.20 meters (40 feet), with customization options available.
Chemical Properties of Monel 400 buttweld Fittings
| Element | Nickel (Ni) | Copper (Cu) | Iron (Fe) | Manganese (Mn) | Carbon (C) | Silicon (Si) | Sulfur (S) |
| Percentage Range | 63.0 - 70.0% | 28.0 - 34.0% | 2.5 max | 2.0 max | 0.3 max | 0.5 max | 0.024 max |
Mechanical Properties of Monel 400 buttweld Fittings
| Property | Tensile Strength | Yield Strength (0.2% offset) | Elongation | Hardness (Rockwell B) |
| Value | 70 ksi (483 MPa) min | 28 ksi (193 MPa) min | 35% min | 65 HRB max |
Advantages of Monel 400 buttweld Fittings:
- Good general corrosion resistance and high strength
- Good sulfide stress corrosion resistance
- Resistance to chloride pitting and crevice corrosion
- Higher resistance to chloride stress corrosion cracking
- Easy to weld and conform
Some of Our Specialities that make us a profitable Business Partner for our clients are :
- Customer focused approach
- Superior quality products
- Timely deliverices
- Customize Size & Specification
- Competitive Pricing
Applications Industry
| Pharmaceutical Equipment | Chemical Equipment |
| Sea Water Equipment | Heat Exchangers |
| Heat Exchangers | Gas Processing |
| Condensers | Specialty Chemicals |
| Pulp and Paper Industry | Pharmaceuticals |
