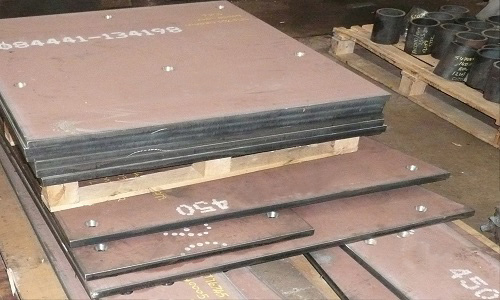

Metal Tubular Products Wear-resistant steel plates with 400 Brinell and 500 Brinell hardness are high-strength steel materials designed to withstand severe abrasion and wear in demanding industrial applications. These plates are known for their exceptional durability and resistance to abrasive forces, making them a preferred choice in industries such as mining, construction, quarrying, and recycling. Hardness: The 400 Brinell wear plates have a Brinell hardness of approximately 400, while the 500 Brinell wear plates are even harder, with a Brinell hardness of around 500. This high hardness level is achieved through a quenching and tempering heat treatment process, which enhances the steel's resistance to wear.
Chemical Composition: The typical chemical composition includes carbon (C), silicon (Si), manganese (Mn), chromium (Cr), and other alloying elements. Carbon content ranges from 0.20% to 0.70%, depending on the grade, while other elements are carefully controlled to ensure optimal mechanical properties and wear resistance. Specifications: These wear plates typically come in a thickness range of 5 to 100 millimeters, with widths ranging from 1000 to 2500 millimeters and lengths between 2000 and 12000 millimeters. Common grades include AR400, Hardox 400, Abrex 400 for 400 Brinell plates, and AR500, Hardox 500, Abrex 500 for 500 Brinell plates. These plates conform to international standards such as ASTM A514, EN 10029, DIN 17100, JIS G3101, among others.
Applications: These wear-resistant steel plates find extensive use in applications where equipment and machinery are subjected to abrasive wear and impact, such as earthmoving equipment, dump trucks, crushers, and chutes in mining operations, as well as excavator buckets, bulldozer blades, and shredder components in recycling facilities. They are also employed in the construction of heavy machinery and structures subjected to extreme wear conditions. Advantages: The key advantages of these wear plates lie in their exceptional wear resistance, which extends the lifespan of critical components, reduces maintenance costs, and enhances overall operational efficiency. Their high hardness and toughness make them suitable for withstanding heavy impact and sliding abrasion simultaneously. It's important to note that the exact mechanical properties, chemical composition, and specifications may vary between manufacturers and product grades. Therefore, it is advisable to consult the manufacturer's documentation or product datasheet for precise and up-to-date information on the specific wear-resistant steel plates you intend to use.*
Largest Inventory
Customer Support
On Time Deliveries
ISO 9001 : 2015 Certified
Specification:
| Specification | 400 Brinell Wear Plates |
| Hardness (Brinell) | 400 |
| Thickness Range (mm) | 5 - 100 |
| Width (mm) | 1000 - 2500 |
| Length (mm) | 2000 - 12000 |
| Typical Grades | AR400, Hardox 400, |
| Abrex 400, | Abrex 500, |
| XAR 400 | XAR 500 |
| Heat Treatment | Quenched and tempered |
| Application | Mining equipment, |
| construction machinery, | construction machinery, |
| quarrying equipment, | quarrying equipment, |
| recycling machinery, | recycling machinery, |
| and more. | and more. |
| Standards | ASTM A514, |
| EN 10029, | EN 10029, |
| DIN 17100, | DIN 17100, |
| JIS G3101, | JIS G3101, |
| and others. | and others. |
Chemical composition of wear_resistant_steel_plates_400_brinell_500_brinell_wear_plates
| Element | 400 Brinell Wear Plates (%) |
| Carbon (C) | 0.20 - 0.50 |
| Silicon (Si) | 0.20 - 0.60 |
| Manganese (Mn) | 1.00 - 1.50 |
| Phosphorus (P) | 0.025 (max) |
| Sulfur (S) | 0.010 (max) |
| Chromium (Cr) | 1.00 - 2.50 |
| Nickel (Ni) | 0.10 (max) |
| Molybdenum (Mo) | 0.20 (max) |
| Boron (B) | 0.005 - 0.040 |
| Copper (Cu) | 0.25 (max) |
| Other Alloying | Varies |
| Elements | - |
Mechanical Properties of wear_resistant_steel_plates_400_brinell_500_brinell_wear_plates
| Property | 400 Brinell Wear Plates | 500 Brinell Wear Plates |
| Hardness (Brinell) | 400 | 500 |
| Tensile Strength (MPa) | Varies | Varies |
| Yield Strength (MPa) | Varies | Varies |
| Elongation (%) | Varies | Varies |
| Impact Toughness (Joules) | Varies | Varies |
| Wear Resistance | High | Very High |
| Abrasion Resistance | Excellent | Exceptional |
| Workability | Good | Fair to Good |
| Weldability | Generally weldable | Difficult |
| Thickness Range (mm) | 5 - 100 | 5 - 100 |
| Applications | Mining equipment, | Mining equipment, |
| - | construction machinery, | construction machinery, |
| - | quarrying equipment, | quarrying equipment, |
| - | recycling machinery, | recycling machinery, |
| - | and more. | and more. |
Advantages of wear_resistant_steel_plates_400_brinell_500_brinell_wear_plates
- Good general corrosion resistance and high strength
- Good sulfide stress corrosion resistance
- Resistance to chloride pitting and crevice corrosion
- Higher resistance to chloride stress corrosion cracking
- Easy to weld and conform
